نام قطعه

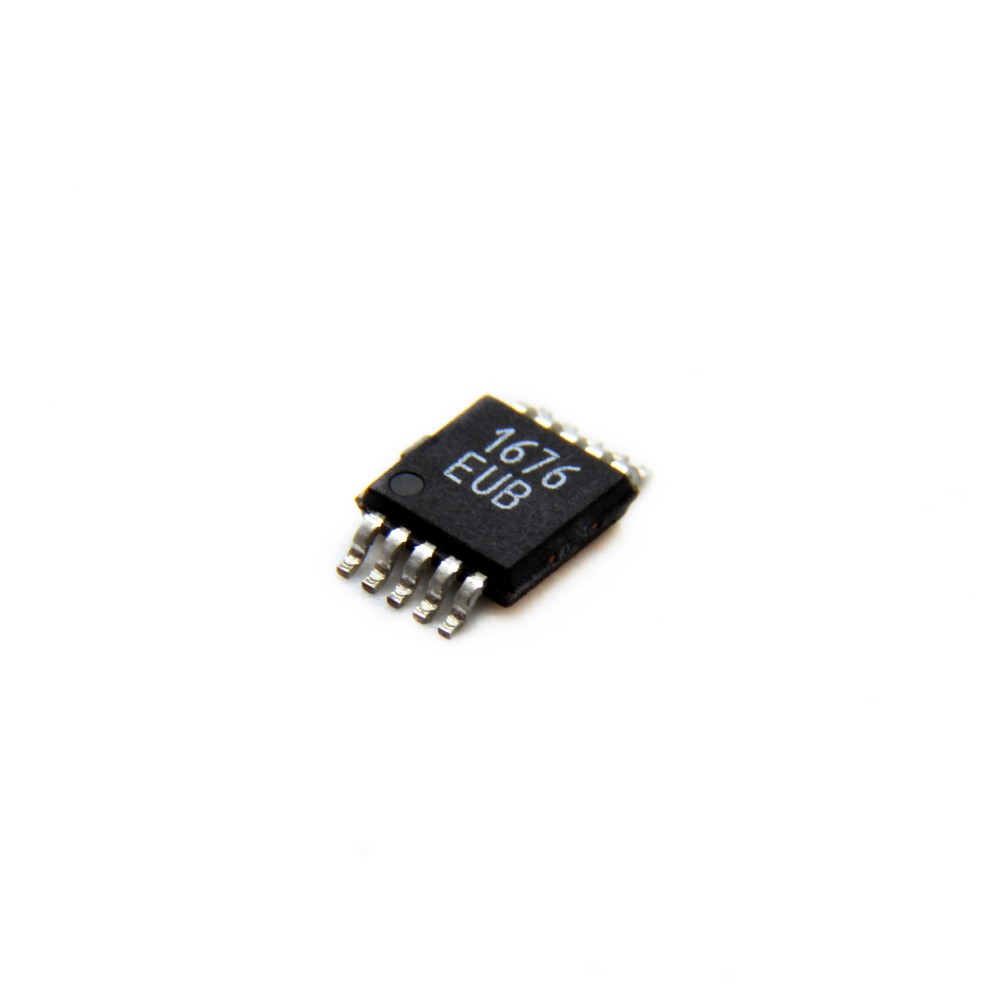

MAX1676EUB
نام کارخانهای
MAX1676EUB
تعداد در بسته
50
عدد
برند
Maxim Integrated
پکیج

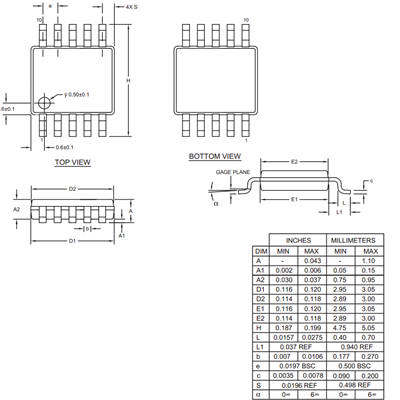

UMAX-10
بستهبندی
Tube
عنوان گروه
دیتاشیت
توضیحات
High-Efficiency, Low-Supply-Current,
High-Efficiency, Low-Supply-Current, Compact, Step-Up DC-DC Converters
| Features | ||
|---|---|---|
| Output Current | 420 mA | |
| Function | Step-Up | |
| Number of Output | 1 Output | |
| Output Voltage (Max) | 5 V | |
| Output Voltage (Max) | 3.43 V | |
| Output Voltage (Max) | 5.20 V | |
| Output Voltage (Min) | 3.3 V | |
| Output Voltage (Min) | 4.80 V | |
| Output Voltage (Min) | 3.17 V | |
| Input Voltage MIN | 700 mV | |
| Input Voltage MAX | 5.5 V | |
| Topology | Boost | |
| Mounting Style | SMD/SMT | |
| Minimum Operating Temperature | -40 C° | |
| Maximum Operating Temperature | +85 C° | |
| Brand | Maxim Integrated | |
| Package | UMAX-10 | |
موجود
ریال
582000
تحویل 8 روزه
