نام قطعه

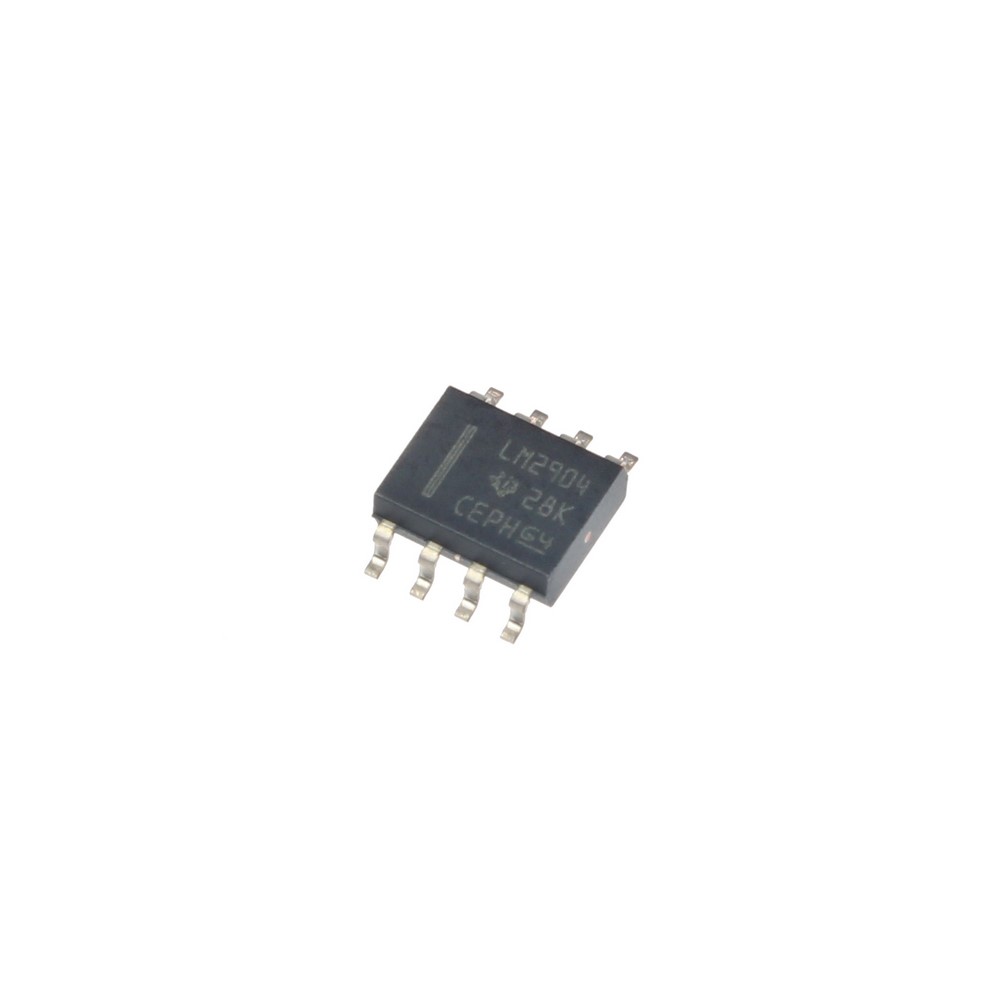

LM2904DR
نام کارخانهای
LM2904DR
تعداد در بسته
2500
عدد
برند
Texas Instruments
پکیج
SO-8 (SOP-8)
بستهبندی
Tape & Reel
عنوان گروه
دیتاشیت
توضیحات
DUAL,LOW POWER OPAMP
Low Power Dual Operational Amplifiers, Wide Bandwidth Unity Gain 1mhz,Single-Dual,Input Offset,500mA
| Features | ||
|---|---|---|
| Number of Channels | 2 Channel | |
| Output Current | 20 mA | |
| Gain Bandwidth Product (fT) | 700 kHz | |
| Supply Type | Single,Dual Supply | |
| Slew Rate | 300 mV/µs | |
| Input Bias Current | 250 nA | |
| Input Offset Voltage | 7 mV | |
| Input Type | Rail-to-Rail | |
| Mounting Style | SMD/SMT | |
| Supply Current | 350 µA | |
| Supply Voltage (Min) | 3 V | |
| Supply Voltage (Max) | 26 V | |
| Minimum Operating Temperature | -40 C° | |
| Maximum Operating Temperature | +125 C° | |
| Brand | Texas Instruments | |
| Package | SO-8 (SOP-8) | |
موجود
ریال
39800
تحویل 8 روزه
| 39,400 | +20 |
| 39,000 | +30 |
| 38,600 | +50 |
| 38,200 | +80 |
| 37,800 | +100 |
