نام قطعه

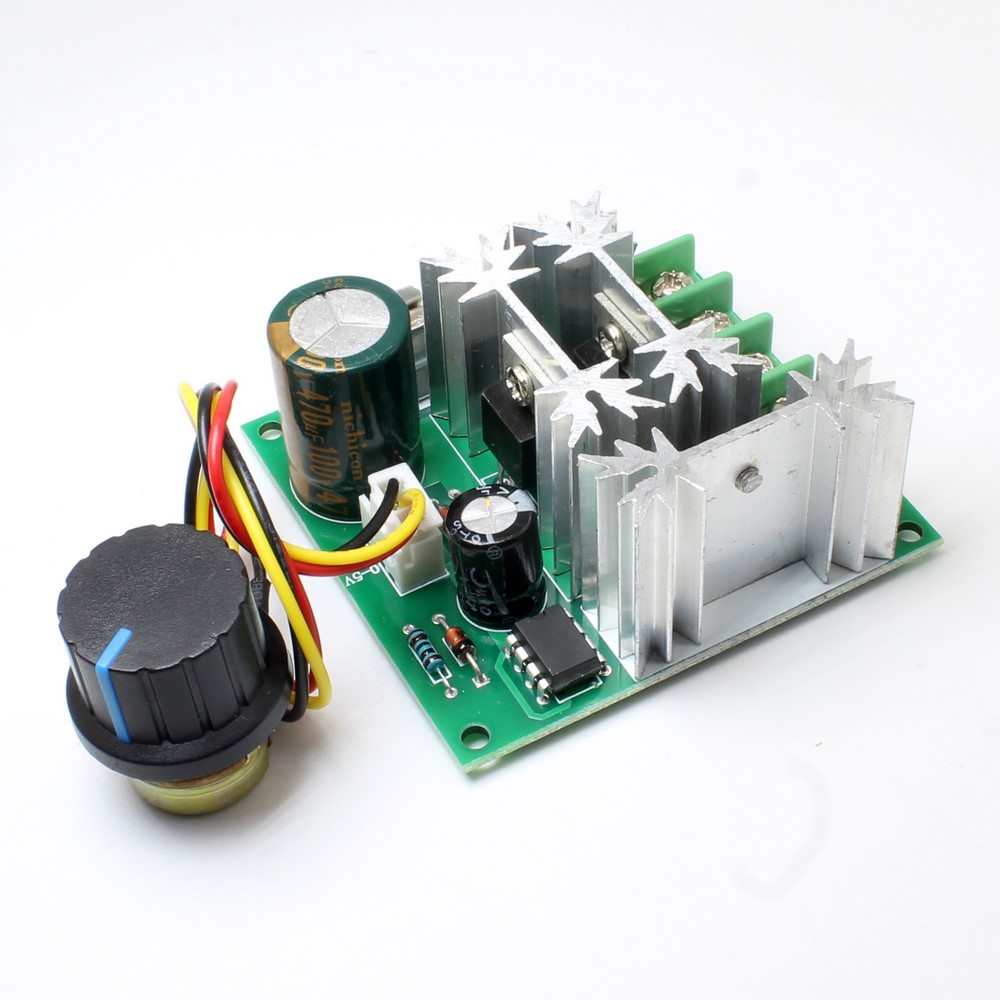

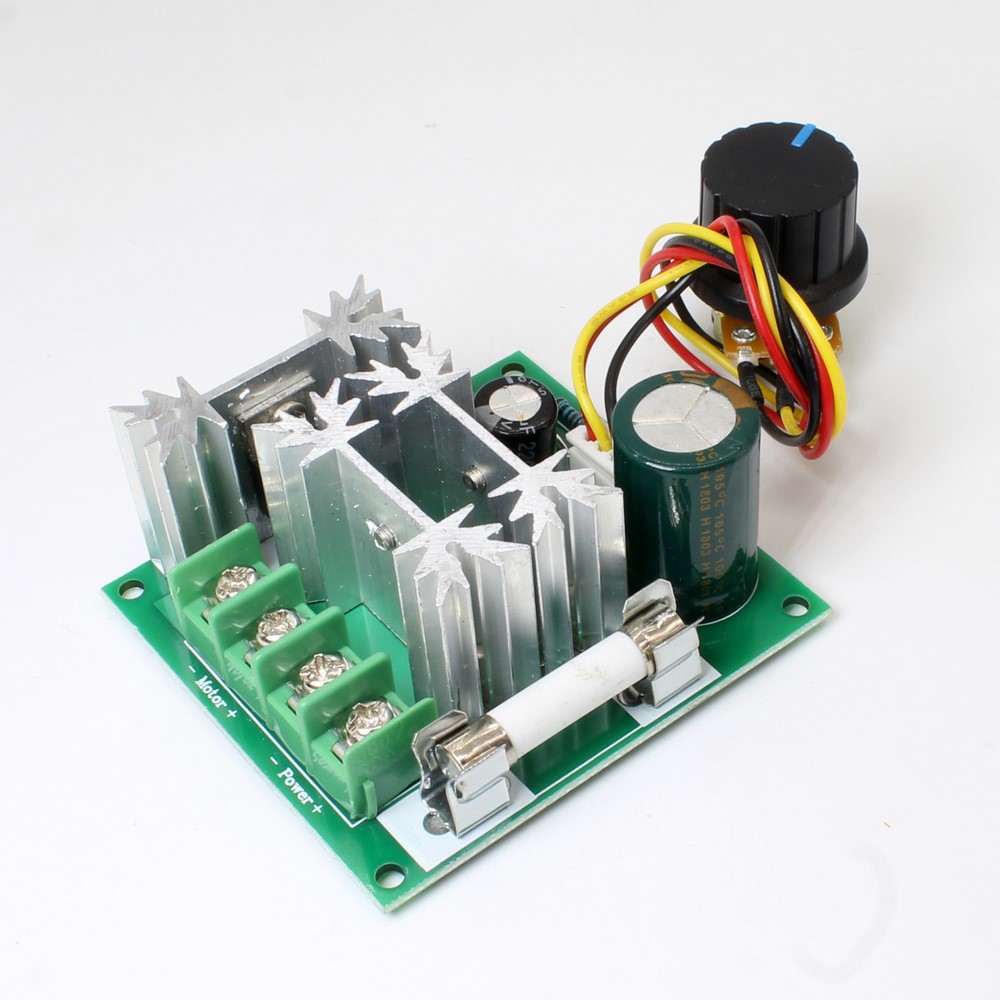

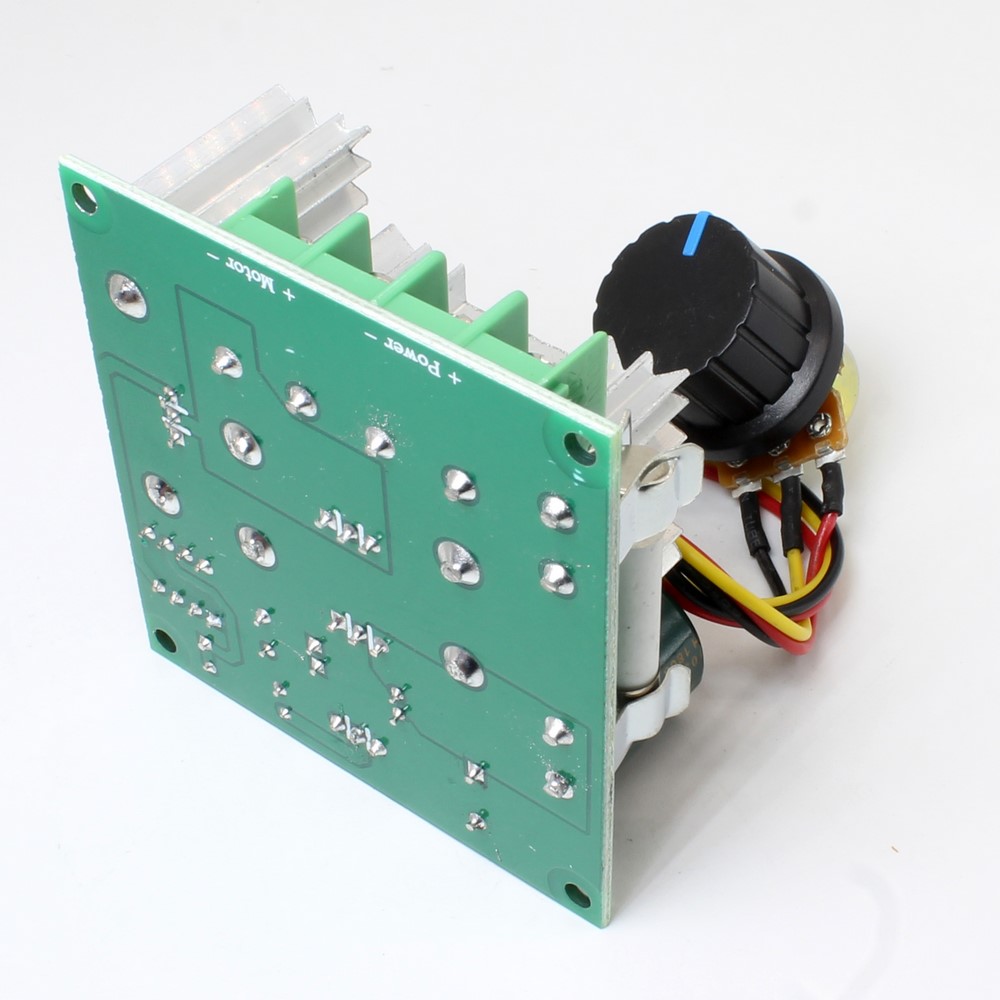

PWM CONTROLLER 15A
نام کارخانهای
PWM CONTROLLER 15A
برند
CHINA
پکیج
Module
بستهبندی
Bulk
عنوان گروه
دیتاشیت
توضیحات
Input supply voltage: DC 6V ~ 90V
The maximum output power: 1000W
The maximum continuous output current: 10A
The overload and short circuit protecting current is 15A
PWM frequency: 16KHz
Duty Cycle adjustable: 0% ~ 100%
The 20A fuse with reverse connection of power supply and control voltage over-voltage protection function
Can adjust the speed by the external 0V ~ 5V signal
Features | ||
---|---|---|
Function | PWM Controller | |
Input Voltage MIN | 6 V | |
Type | DC Motor Speed Controller | |
Brand | CHINA | |
Package | Module |
