نام قطعه

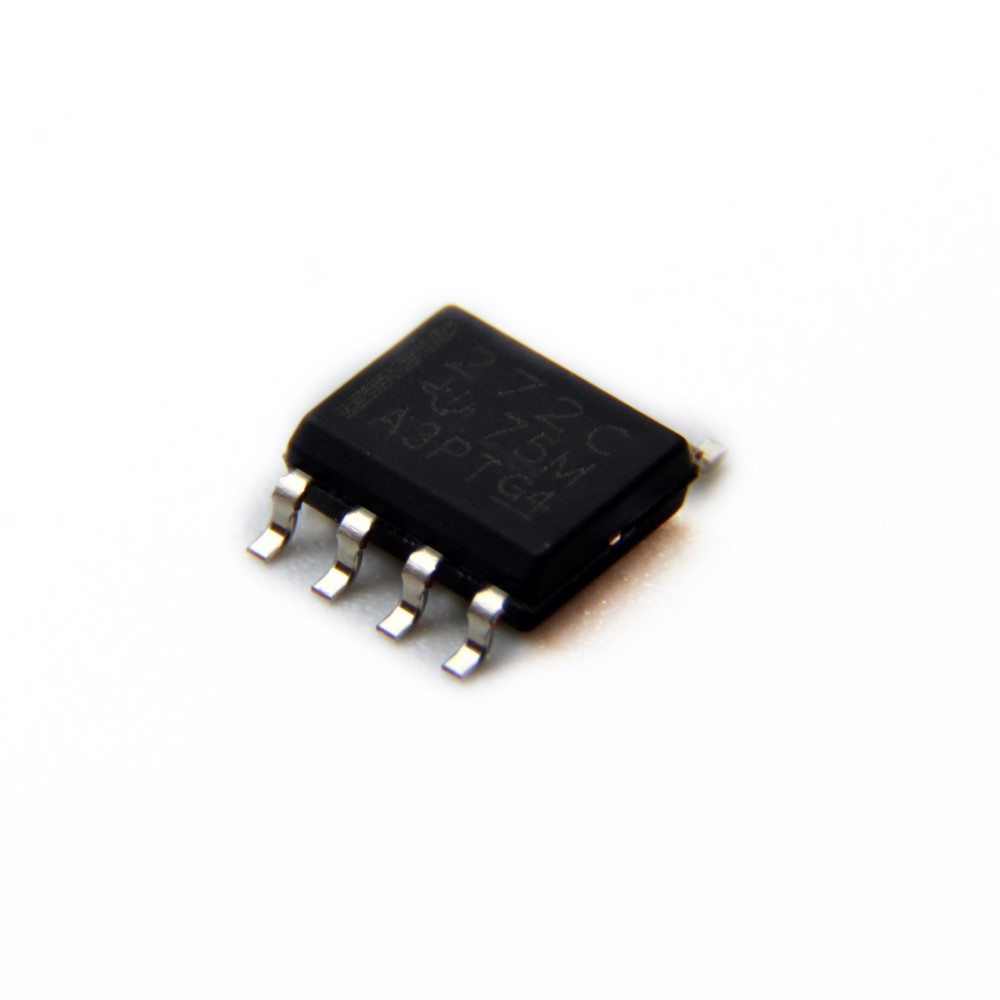

TLC272CD
نام کارخانهای
TLC272CD
تعداد در بسته
2500
عدد
برند
Texas Instruments
پکیج
SO-8 (SOP-8)
بستهبندی
Tape & Reel
عنوان گروه
دیتاشیت
توضیحات
DUAL,PRECISION OPAMP
Lincmose Precision Dual Operational Amplifiers; 10mV, Ta:0ّC - 70ّC, 3V - 16V,25 nV//Hz at f = 1 kHz
| Features | ||
|---|---|---|
| Number of Channels | 2 Channel | |
| Output Current | 30 mA | |
| Gain Bandwidth Product (fT) | 1.7 MHz | |
| Supply Type | Single | |
| Slew Rate | 3.6 V/µs | |
| Input Bias Current | 60 pA | |
| Input Offset Voltage | 10 mV | |
| Input Type | Rail-to-Rail | |
| Input Offset Current | 60 pA | |
| Mounting Style | SMD/SMT | |
| Supply Current | 700 µA | |
| Supply Voltage (Min) | 3 V | |
| Supply Voltage (Max) | 16 V | |
| Minimum Operating Temperature | -40 C° | |
| Maximum Operating Temperature | +85 C° | |
| Brand | Texas Instruments | |
| Package | SO-8 (SOP-8) | |
موجود
ریال
142000
تحویل 8 روزه
