نام قطعه

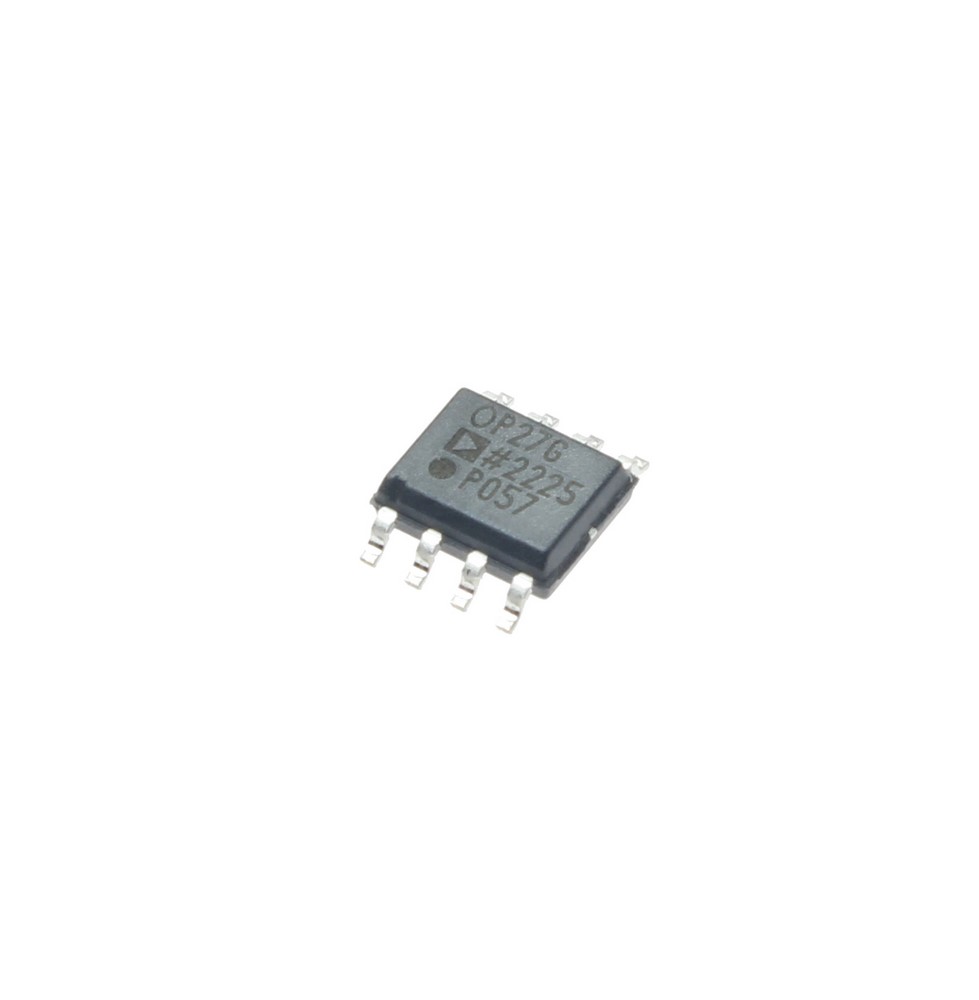

OP27GS
نام کارخانهای
OP27GS
تعداد در بسته
100
عدد
برند
Analog Devices
پکیج
SO-8 (SOP-8)
بستهبندی
Tape & Reel
عنوان گروه
دیتاشیت
توضیحات
SINGLE,LOW NOISE OPAMP
Low-Noise, Precision Operational Amplifier;80nV p-p (0.1 Hz to 10 Hz),Drift:0.2وV,Cmrr:126Db,100mV
| Features | ||
|---|---|---|
| Number of Channels | 1 Channel | |
| Gain Bandwidth Product (fT) | 5 MHz | |
| Slew Rate | 1.7 V/µs | |
| Input Bias Current | 80 nA | |
| Input Offset Voltage | 100 µV | |
| Input Noise Current Density | 1.7 pA/sqrt Hz | |
| Input Offset Current | 135 nA | |
| Mounting Style | SMD/SMT | |
| Supply Current | 4.67 mA | |
| Supply Voltage (Min) | -22 V | |
| Supply Voltage (Max) | 22 V | |
| Minimum Operating Temperature | -40 C° | |
| Maximum Operating Temperature | +85 C° | |
| Brand | Analog Devices | |
| Package | SO-8 (SOP-8) | |
موجود
ریال
503000
تحویل 8 روزه
